Small horizontal full automatic compression baler (PP strapp）PW20Q/30Q/40Q
Scope of Application：
*It is widely used in the compression, baling and recycling of materials such as printing, special paper, film, fiber and non-woven fabric scraps and so on.
Contact us We are here to solve your problems professional, Contact us immediately!
PRODUCT DETAILS
*Unmanned full automatic compression baling machine, compression and baling are automatically completed.
*PP strapping reduces the cost of auxiliary materials, facilitates storage and transportation, and reduces labor costs.
*Double ram compression with high density, small materials can be bagged.
*The feed opening can be connected to the air pipe and separator for feeding or conveying, or it can be directly used with conveyor.
* Due to the special design of the machine, this model is only suitable for lightweight materials.
* PLC program, electric button control, simple operation, self-contained feeding detection, automatic compression, automatic PP strapping.
* Three-phase voltage, safety interlock, simple operation, it can be equipped with air pipes and conveyor feeding for higher efficiency.
Technical Parameters
| Model | JPW20Q | JPW30Q | JPW40Q |
| Compression force（Ton） | 20 | 30 | 40 |
| Bale size（L*W*H）mm | 500*500*500 | 700*700*700 | 800*800*800 |
| Feed opening size（L*W）mm | 700-460 | 900*660 | 1100*760 |
| Bale lines | 2-4 | 3-5 | 3-5 |
| Bale weight（Kg） | 30-70 | 70-130 | 100-150 |
| Voltage(Customizable)（V/Hz） | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Power（Kw/Hp） | 7.5Kw/10Hp | 11Kw/15Hp | 15Kw/20Hp |
| Machine size（L*W*H）mm | 3400*3010*2400 | 4250*3120*2600 | 4750*3380*2900 |
| Machine weight（Ton） | 2.8 | 3.3 | 3.7 |

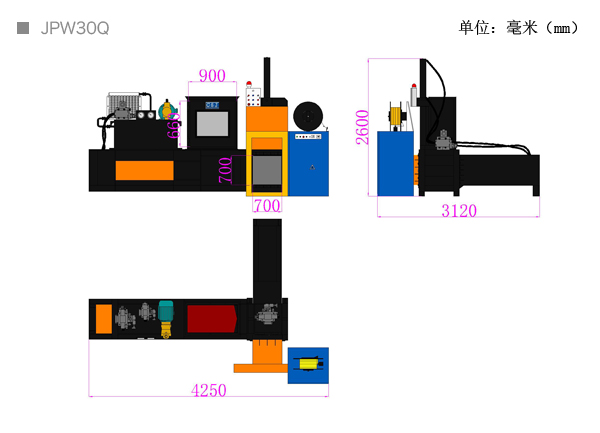

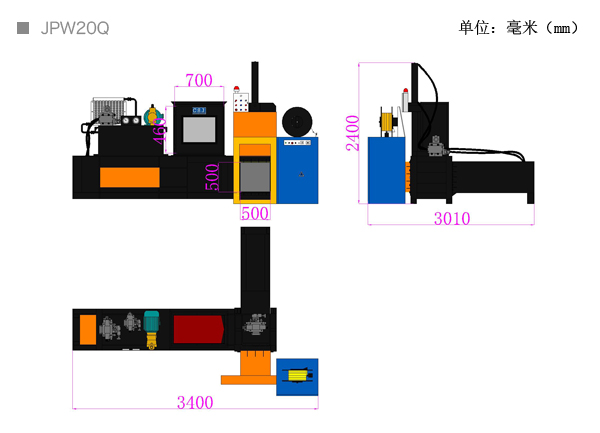

Dimensions
